Plans and files for radio control airplanes ..
Built from Depron, Hobby King Foam, $ Tree Foamboard or MPF .. and also 3D Printed Files
​
Wing Span: 1000mm
Length: 840mm
Weight: Without battery 500 grams
AUW with battery: 700 grams
4 x 9 gram servos
A little over one sheet of 6mm Depron
2 x cheap 4mm CF tubes from HK
Battery used for maiden 1500 / 3s Graphine (65c)
EDF: Durafly 70mm Zephyr Replacement EDF w/ Motor
ESC: Turnigy 55A SBEC
"SWALLOW" Build log and flight video
Make slots for CF tube, roll centre and glue formers in place
CF spars glued in with Hot Glue, also F4, F5, F6 and F7 glued in place

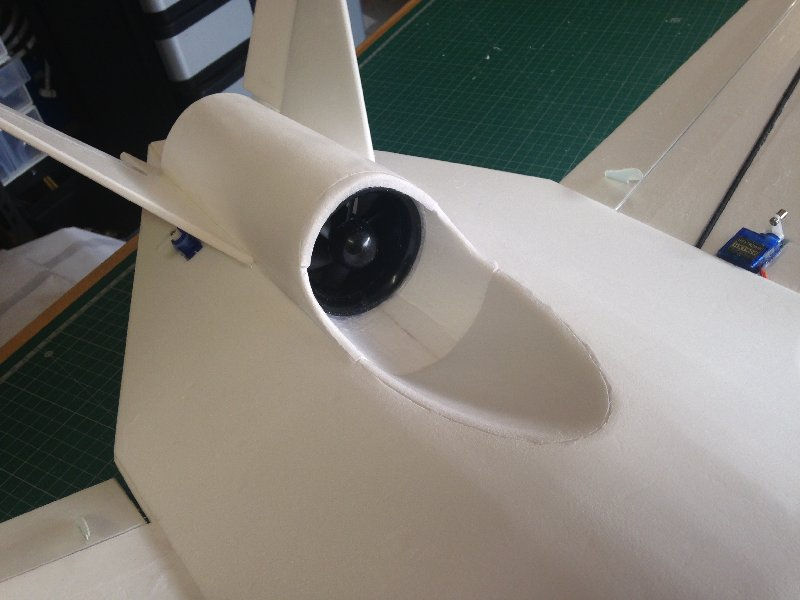

Roll EDF duct / exhaust and glue fan in place
Roll centre section of top fuselage before cutting out the area for the EDF
Now cut-out the area for the EDF Duct
Test fit the top fuselage
Once you are happy with the fit, glue the top fuselage in place
